BUSWAY
Modular busway lengths and all components needed to build a continuous RUN (lengths, mechanical joiners, electrical joiner inserts, hangers, cable kits, closure strip).

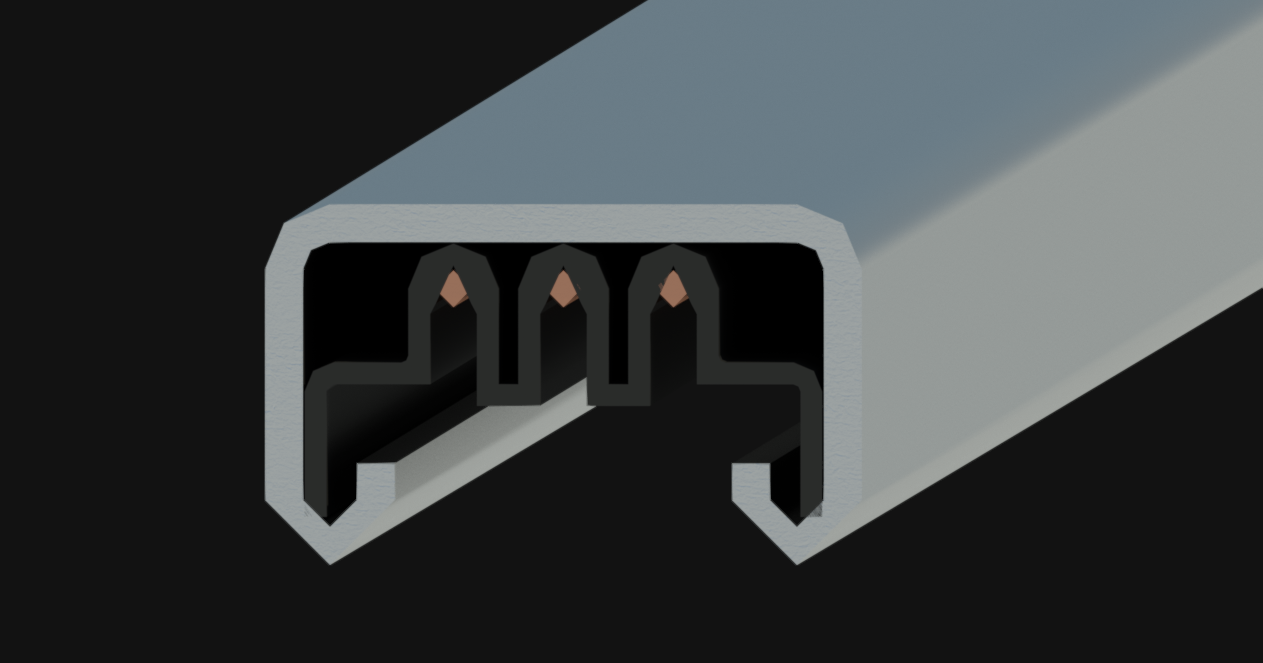

Busway length with continuous open slot for plug-in power and/or lighting units.
View full product details on TrackBusway.com

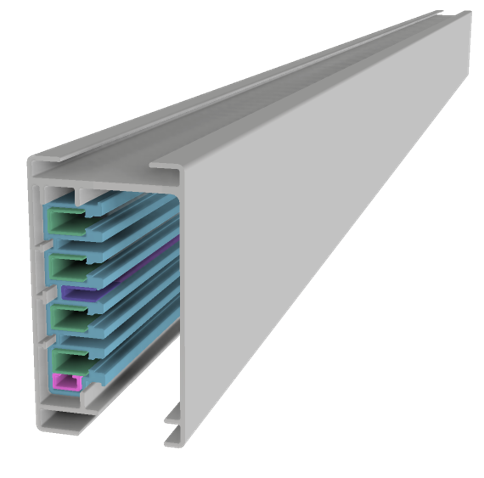

Three-phase busway length offers continuous access slot for plug-in units, distributing
208/480-volt power.
View full product details on TrackBusway.com
Heavy-duty steel tray routes low-voltage cabling.
View full product details on TrackBusway.com

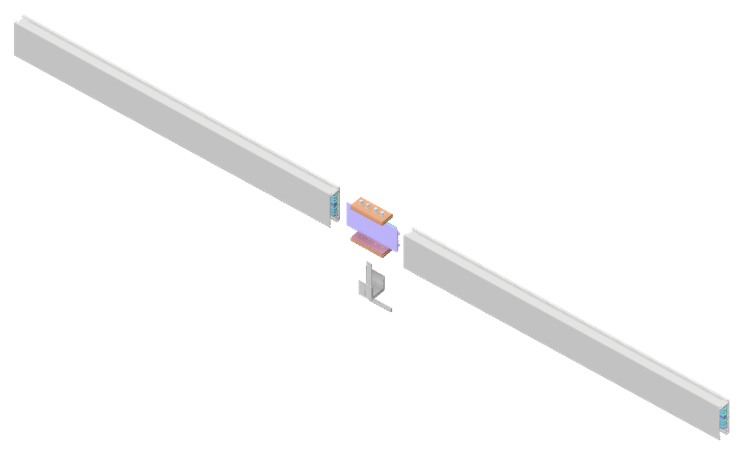

Mechanical joiner sleeve securely connects abutting track busway lengths, preserving structural
integrity and alignment.
View full product details on TrackBusway.com
Joiner Inserts control power between abutting Track Busway lengths, enabling circuitry to
continue or dead-end.
View full product details on TrackBusway.com
Steel hanger slides onto busway length for up to 10' between supports.
View full product details on TrackBusway.com
Suspension cable kit with glide and eye-bolt for secure, height-adjustable support.
View full product details on TrackBusway.com
Cable pass-through grommet neatly routes support cables through ACT ceiling tiles, preserving
clean finished aesthetics.
View full product details on TrackBusway.com
Field-cuttable closure strip covers track busway open slot, improving aesthetics and debris
protection.
View full product details on TrackBusway.com
Track Busway systems are designed to change. Smart Intersections allow runs to cross, branch, and reconfigure without field wiring or rigid junction boxes. By separating mechanical alignment from electrical continuity, intersections remain clean, modular, and fully serviceable.
Smart Intersections are built using two complementary components: CROSSOVERs (mechanical alignment) and JUMPERs (electrical continuity).
CROSSOVERs create precise mechanical intersections where Track Busway runs cross or branch. They define the physical geometry of the system while keeping conductors isolated and accessible.
CROSSOVERs support common layout conditions including L-, T-, X-, and variable-angle intersections, making them ideal for grids, criss-cross layouts, and complex ceiling geometries.
Mechanical CROSSOVERs for single-deck Track Busway runs. Enables precise L-, T-, and X-intersections while maintaining clean, modular mechanical alignment.
View full product details on TrackBusway.com
Mechanical CROSSOVERs allowing a double-deck Track Busway run to intersect a single-deck run. Preserves spacing and alignment in mixed-deck layouts.
View full product details on TrackBusway.com
Mechanical CROSSOVERs for intersecting double-deck Track Busway runs. Designed for dense grid layouts requiring consistent spacing and structural clarity.
View full product details on TrackBusway.com
Adjustable mechanical CROSSOVERs for non-90° Track Busway intersections. Supports variable angles while maintaining stable alignment and modular system geometry.
View full product details on TrackBusway.com
JUMPERs complete the electrical path across intersections created by CROSSOVERs. They bridge conductors between runs without hard wiring, preserving circuit continuity while allowing future reconfiguration.
By decoupling electrical connection from mechanical structure, JUMPERs eliminate the need for junction boxes, splices, or field-terminated wiring at intersections.
Slimline electrical JUMPERs that maintain 20A circuit continuity across Track Busway intersections without junction boxes or field wiring.
View full product details on TrackBusway.com
Flexible electrical jumper cords that carry higher-amperage branch circuits across Track Busway intersections while preserving modular reconfiguration.
View full product details on TrackBusway.com
Starter feed energizes track busway at an endpoint, delivering two circuits with compact feed
unit.
View full product details on TrackBusway.com
Plug-in un-protected feed unit anywhere along the track busway run to supply up to 2-circuits.
View full product details on TrackBusway.com
Plug-in feed unit with 2-pole breaker to supply 1-phase electrical service anywhere along the run
of track busway.
View full product details on TrackBusway.com
Plug-in feed with 3-pole breaker to supply 3-phase power anywhere along the run of track busway.
View full product details on TrackBusway.com
Plug-in compact receptacle for 120-volt, 15-amp power anywhere along the run of track busway.
View full product details on TrackBusway.com
Outlet box plugs into track busway, providing convenient unprotected 120-volt power drop for
overhead equipment.
View full product details on TrackBusway.com
Single-pole breaker enclosure with receptacle delivers 120-volt of protected power from track
busway to your equipment.
View full product details on TrackBusway.com
Single-pole corded tap-off supplies convenient 120-volt power from busway.
Two-pole cord drops 208-volt single-phase power from track busway to your equipment.
View full product details on TrackBusway.com
Outlet box taps Track Busway, delivering unprotected 208-volt single-phase power drop for
overhead equipment.
View full product details on TrackBusway.com
Two-pole breaker enclosure with receptacle delivers 208-volt single-phase power from track busway
to your equipment.
View full product details on TrackBusway.com
Two-pole cord drops 240-volt power from track busway to your equipment.
View full product details on TrackBusway.com
Outlet box taps Track Busway, delivering unprotected 240-volt power for overhead equipment.
View full product details on TrackBusway.com
Two-pole breaker with receptacle enclosure delivers 240-volt of protected power from track busway
to your equipment.
View full product details on TrackBusway.com
Three-pole drop cord provides balanced 208-volt three-phase supply for motors.
View full product details on TrackBusway.com
Add data connectivity anywhere along the system.
Secure steel bracket for mounting non-electrical devices directly to the busway. Ideal for sensors, signage, or canopy-mounted accessories.
View full product details on TrackBusway.com
Suspends devices below the busway using a threaded stem. Provides clearance while maintaining a rigid, tool-free connection.
View full product details on TrackBusway.com
Non-electrical enclosure for mounting sensors or controls on the busway. Installs horizontally without tapping conductors.
View full product details on TrackBusway.com
Direct-mount octagon box for canopy-style devices that don’t require electrical connections. Clean, secure overhead support.
View full product details on TrackBusway.com
Octagon box with a threaded stem for suspending devices below the busway. Ideal when fixtures need to drop lower.
View full product details on TrackBusway.com
Low-profile fitting for mechanically supporting signage or lightweight devices up to 20 lbs. Attaches without interfering with conductors.
View full product details on TrackBusway.com
Flexible mesh sleeve guides data or control cables neatly from busway to workstations.
View full product details on TrackBusway.com

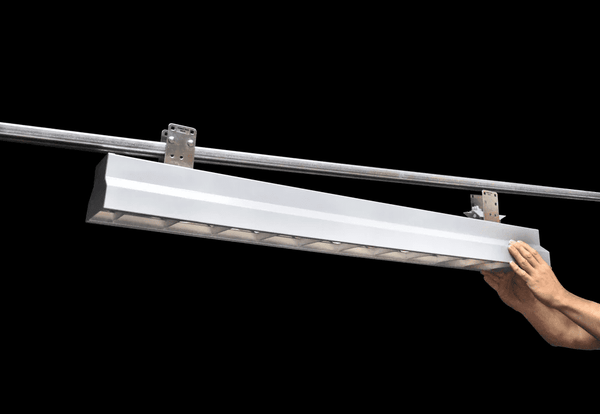

Mount linear, pendant, or accent lighting with plug-in flexibility
| Lumens | 1200LM |
| Watts | 14W |
| Kelvin | 3000K |
| Lumens | 860LM |
| Watts | 10W |
| Kelvin | 3000K |
| Lumens | 2189LM |
| Watts | 29W |
| Kelvin | 3000K |
| Lumens | 3050LM |
| Watts | 30W |
| Kelvin | 3000/4000K |
| Lumens | 2604 |
| Watts | 30W |
| Kelvin | 3500K |
| Lumens | up to 2500LM |
| Watts | up to 26W |
| Kelvin | 4000K |
| Lumens | 6915LM |
| Watts | 51W |
| Kelvin | 3500K |
| Lumens | 4154LM |
| Watts | 39W |
| Kelvin | 3000K |
| Lumens | up to 4100LM |
| Watts | up to 42W |
| Kelvin | 3000K |
| Lumens | up to 4895LM |
| Watts | up to 46W |
| Kelvin | 3500K |
| Lumens | 6703LM |
| Watts | 56W |
| Kelvin | 4000K |
| Lumens | 4682LM |
| Watts | 51W |
| Kelvin | 4000K |
| Lumens | 4200LM |
| Watts | 44W |
| Kelvin | 3000/4000K |
| Lumens | 7800LM |
| Watts | 83W |
| Kelvin | 3000K |
| Lumens | up to 23000LM |
| Watts | up to 200W |
| Kelvin | 3500/5000K |
| Lumens | 860LM |
| Watts | 10W |
| Kelvin | 3000K |
| Lumens | 3050LM |
| Watts | 30W |
| Kelvin | 3000/4000K |
| Lumens | up to 2500LM |
| Watts | up to 26W |
| Kelvin | 4000K |
| Lumens | 2189LM |
| Watts | 29W |
| Kelvin | 3000K |
| Lumens | 1200LM |
| Watts | 14W |
| Kelvin | 3000K |
| Lumens | 2604 |
| Watts | 30W |
| Kelvin | 3500K |
Straight-line KITs for aisles, benches, and assembly lines.
Delivers up to two 20-A circuits of 120-V power along a straight overhead run. Pre-wired and tool-free for flexible plug-in drops.
Combines overhead power and a built-in tray for data and low-voltage cabling. Keeps power and data aligned in one suspended system.

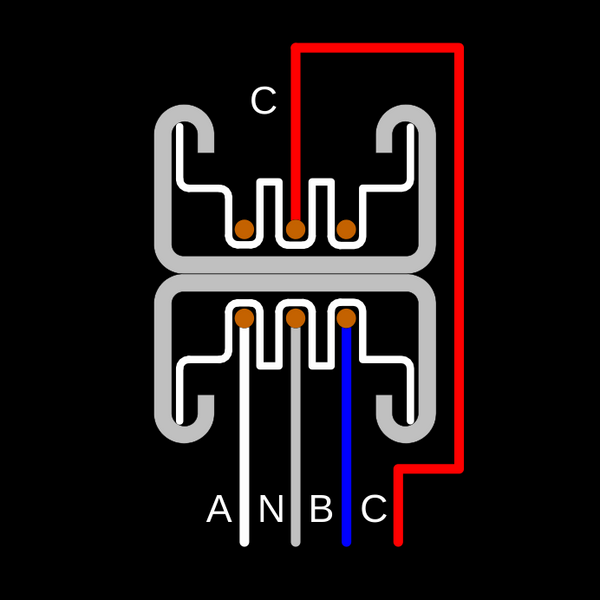

Stacks two busway levels to provide up to four 20-A circuits in one run. Ideal for high-density layouts that need scalable power.
Supplies 208-V or 480-V line-to-line power for industrial equipment. Retains open-slot flexibility for movable plug-in drops.
The USA TrackBusway™GRIDredefines how power is dropped by turning the ceiling into a fully flexible and reconfigurable infrastructure. Unlike traditional linear systems, the grid configuration enables power to be accessed anywhere across intersecting rows and columns—eliminating constraints of fixed spacing and rigid layouts.
Expanded grid layout delivering dense overhead access for labs, makerspaces, and high-mix work cells.
Balanced grid layout providing flexible overhead access across workstations and shared equipment zones.
Compact grid layout for benches, carts, and light-duty work areas requiring frequent repositioning.
The Track Busway Rectangle System provides total design freedom, enabling users to add, move, or subtract elements such as power drops and lighting fixtures.
Full-scale perimeter system delivering plug-in power, lighting, and data around expansive spaces.
Perimeter layout designed for larger rooms, test areas, or grouped workstations.
Perimeter loop for compact rooms or workcells needing plug-in access on all sides.
Cross-room KITs delivering overhead power where direct paths aren’t possible. This greatly improves comprehension.
Spans between parallel busway runs to create continuous overhead support. Accepts lighting, power drops, and signage without adding extra hangers.
